Flipper Bat with Williams Logo White, Yellow, or Black. Wms no. 20-10110



£4.50

White Flipper Bat with Williams Logo and Lightning Impression White or Black Only. Limited stocks.



£4.50

Flipper Bat - Old style Bally. A-3994 Yellow or white cap, screws onto metal flipper and shaft. Shaft has turned recess into which the pawl is clamped. This style flipper is broader than the above flipper.





£4.50

Hex Cap Screw for End Stop with Nylock 10-32 Thread



£0.80

Flipper link bush



£0.95

Flipper Button Plastic Red, Yellow, White, Blue or Orange



£2.00

PAL Nut for Above Pushbutton



£0.50

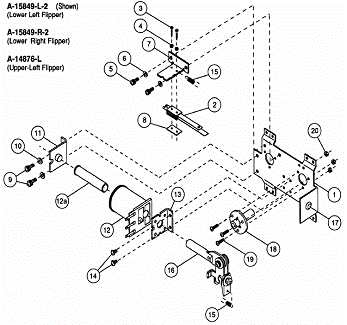

WPC Fliptronic Parts  For ALL Williams and Bally Pinballs from and including Addams Family to Monster Bash.

WPC PRE—Fliptronic Parts  For ALL Williams and Bally Pinballs from FirepowerII 1/84 to Hurricane. 8/91.

Also for Williams pins from Firepower 03/80 to Joust 10/83 IF you have a removable coil end stop bracket. If not, and your baseplate and end stop are one piece, then you need the System 6 and 7 rebuild kit.

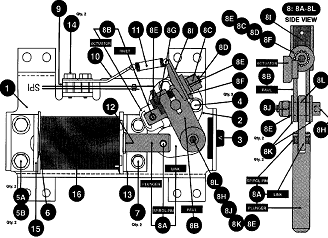

Linear Flippers For Bally Pinballs from Rolling Stones 5/80 to Truckstop 11/88

Early Bally Flippers For Bally Pinballs from High Deal 5/75 to Space Invaders 10/80

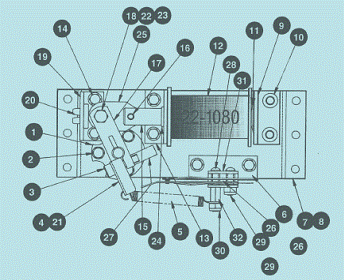

Sega Batman for Ever 7/95 to Stern Current Flippers



1. Base Plate *

£6.50

2. End of Stroke Switch— Low Power

£3.00

11. End Stop Bracket A12390 (Post 1986)

£2.00

12. Flipper Coil -  Specify FL11630, FL15411, FL11629

£10.00

12a. Coil Sleeve

£0.75

15. Flipper Return Spring

£0.50

Fliptronic Flipper Rebuild Kit. Enough parts to rebuild one left and one right flipper.



2 Plunger, Link and Pawl Assembly (1xLeft, 1xRight)

2 End Stops

2 Return Spring

2 Coil Sleeves

2 EOS Switches

Screw Pack



£20 per Kit

16. Plunger Link and Pawl Assembly

£7.50

16a. Plunger and Link

£3.00

16b. Link Bushing

£0.95

16c. Pawl Assembly

£4.50

17. Rubber Plug

£1.00

18. Nylon Playfield Bushing 03-7568

£0.75

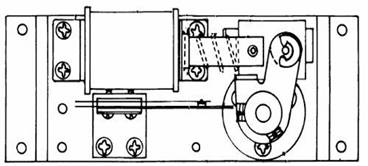

Early Williams Flippers For Williams Pinballs from Mid-60s to Laser Ball 12/79

Home Page

Battery Holders

Balls

Ball Shooter Parts

Bolts

Brackets

Cabinet Parts

Capacitors

Circuit Boards

Cleaners

Coils

Connectors

Coloured Lamps

Decal

Displays

Drop Target Parts

EOS Switches

Fender Washers

Flipper Parts

Fuses

Game Specific Parts

Integrated Circuits

Lamps

Lamp Holders

Lamp Covers

Metal Posts

Mechanical Assemblies

Microswitches

Motors

Mylar Protectors

Nuts

Opto Switches

Pinball 2000

Plastic Posts

Pop Bumper Parts

Resistors

Ring Kits

Rubbers

Springs

Stand Up Targets

Tools

Transistors

Washers

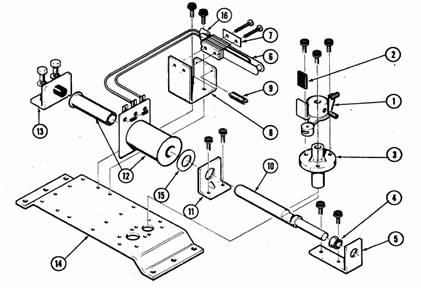

1. Flipper Pawl

A-3711-4 Left or

A-3711-5 Right

£9.00

9. Return Spring 100-363

£0.90

4. Nyliner 20-8790-2

£0.75

10. Linear Plunger S-496-217

£5.00

13. End Stop A-613-127

£5.00

12. Flipper Coil with Sleeve







12a Coil Sleeve

£0.75

Linear Flipper Rebuild Kit



2 Flipper Plungers
2 Flipper Nyliners
2 Return Springs
2 Coil Stops
1 Flipper Pawl Assy-R
1 Flipper Pawl Assy-L
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches



£48.00

Linear Flipper Rebuild Kit—Mini Kit



2 Flipper Plungers
2 Flipper Nyliners
2 Return Springs
2 Coil Stops
2 Flipper Bushing
2 Sleeves
2 EOS Switches



£24.00







End Stop A-613-127

£5.00

Plunger and Link A-3714

£7.00





Early Bally Flipper Rebuild Kit



2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops
1 Lever Arm Assy-R
1 Lever Arm Assy-L
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches



£44.00

Early Bally Flipper Rebuild Kit—Mini Kit



2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops
2 Sleeves
2 EOS Switches



£27.00

Home Page

Battery Holders

Balls

Ball Shooter Parts

Bolts

Brackets

Cabinet Parts

Capacitors

Circuit Boards

Cleaners

Coils

Connectors

Coloured Lamps

Decal

Displays

Drop Target Parts

EOS Switches

Fender Washers

Flipper Parts

Fuses

Game Specific Parts

Integrated Circuits

Lamps

Lamp Holders

Lamp Covers

Metal Posts

Mechanical Assemblies

Microswitches

Motors

Mylar Protectors

Nuts

Opto Switches

Pinball 2000

Plastic Posts

Pop Bumper Parts

Resistors

Ring Kits

Rubbers

Springs

Stand Up Targets

Tools

Transistors

Washers

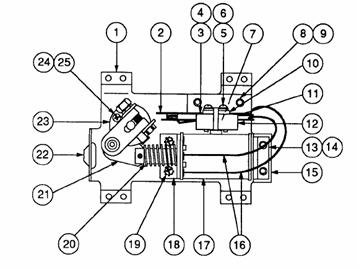

Left Flipper Pictured



2. Playfield Bushing 545-5594

£2.00

9. End of Stroke Switch

£2.90

11. Flipper Return Spring

£0.75

12. Coil Sleeve

£0.75
